Venezuela ANDINOSA 3400TPD Clinker Cement Production Line Project

-

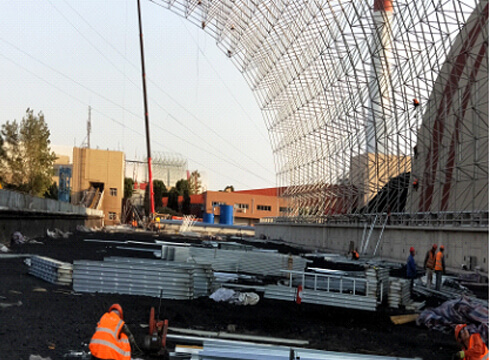

广西盛隆筒壳详细图01

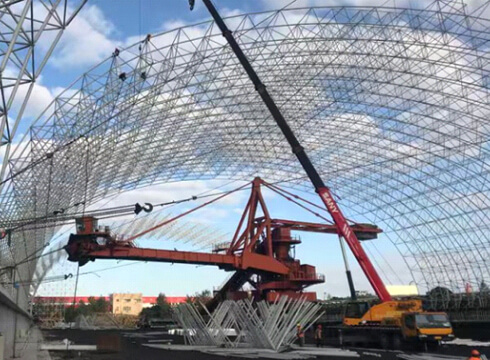

广西盛隆筒壳详细图02
space frame design
steel structure contractor

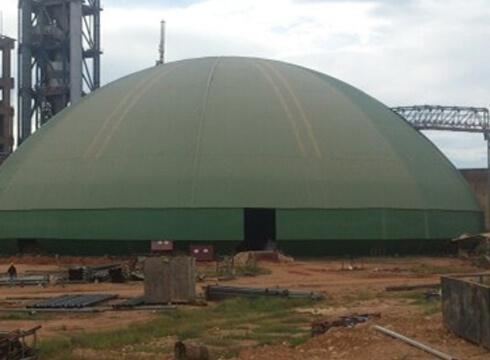

  • The cone space frame storage of the limestone prehomogenizing yard： 97m diameter cone

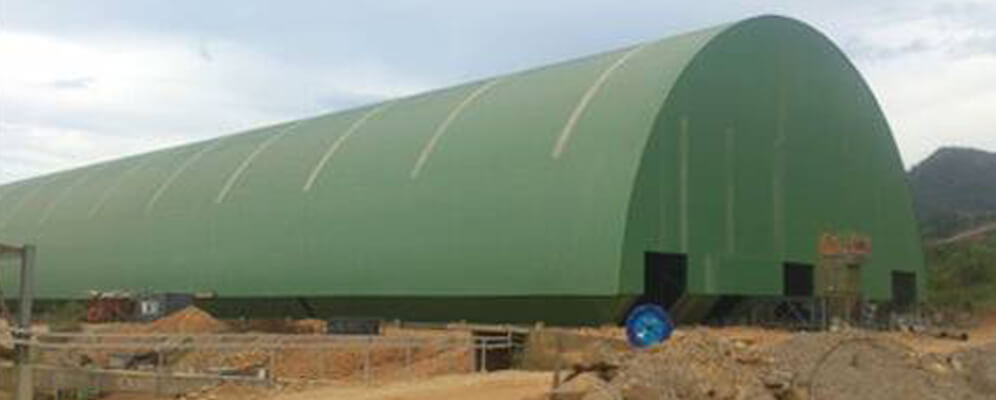

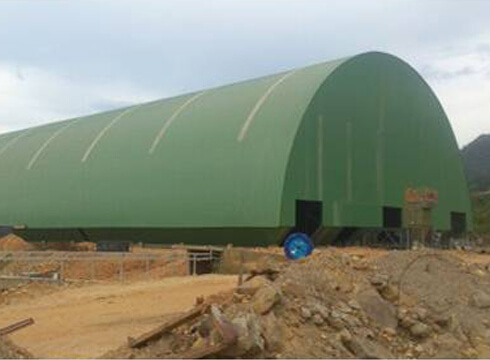

  • The barrel space frame storage of auxiliary material: 236m*44m
  • The cone space frame storage of Clinker: 33m diameter cone
  • The flat space frame structure of Packing workshop: 84x71m



Advantage



clinker storage sheds

  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

Due to the differences in technical standards, raw fuel, plant construction concept, environmental conditions and configuration level, this project has many unique performances compared with similar domestic projects in terms of process scheme design, equipment control configuration, environmental safety considerations and so on.
