Shanghai National Convention and Exhibition Center Project

-



上海国家会展中心项目详细图02

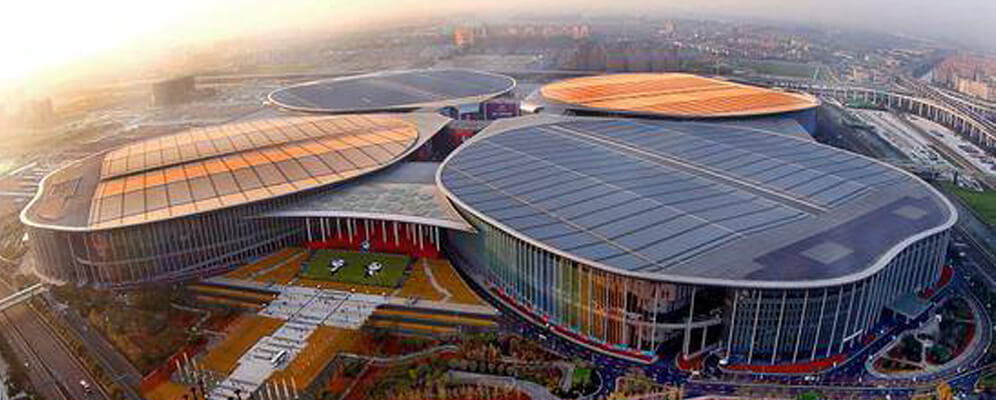

exhibition hall
exhibition hall
上海国家会展中心项目详细图01

  • Area 1.47 million ㎡

  • Height 43m

  • Span 108m

  • Dimension of hall 270*338 m

Advantage
上海国家会展中心项目优势图

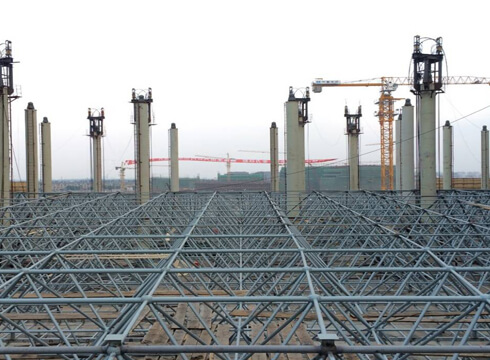

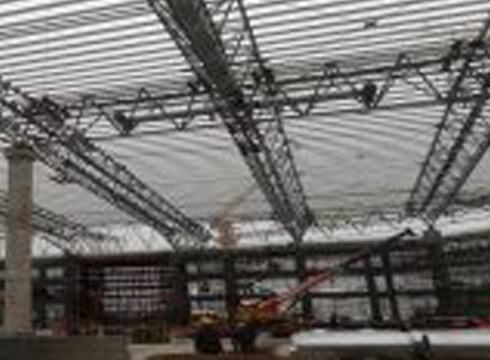

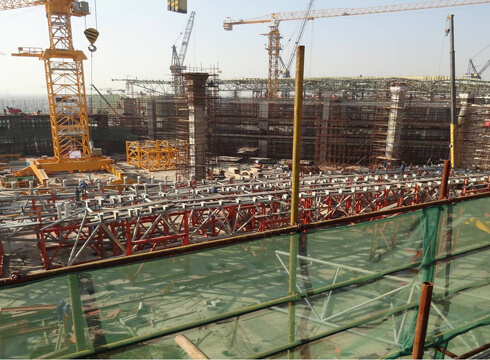

The total construction area of this project is 1,470,000M2, the building height is 43m. This project is divided into 17 units, include A0, A1, B0, B1, D1, E1, E2A, E2B, E2C, E2D, F1, F3, C0, C1, D0, F2, G area.Our company is responsible for the pipe truss project in Area C1. The exhibition hall is 270m wide and 338m long. The roof is a multi-span continuous triangular space pipe truss structure with an area of about 100,000 square meters.The walking tower crane is used to lift the blocks and connect them at high altitude.

The maximum span is 108m.
