Qingdao Wanda Dongfang Yingdu Steel Structure Project

-



青岛万达东方影都详细图02
青岛万达东方影都详细图01
490x360-1
青岛万达东方影都详细图03

  • Span 55 m

  • Warranty 50 years

  • Roof color steel

  • Wind load 0.45 KN/㎡

  • Seismic acceleration 0.1g

Advantage
青岛万达东方影都优势图

The total construction area of the theme park is about 21,000 square meters. It is a single-story large-span and large-space building with a height of about 30 meters, a length of 135 meters, and a width of 126 meters. The roof adopts a “fish-belly” bidirectional space triangular steel truss structure system, with a maximum main span of 67 meters.

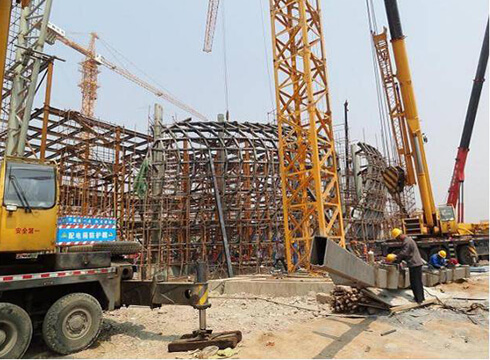

The smooth lifting of the roof steel truss indicates that Qingdao Oriental Cinema Wanda MAO Cultural Tourism has entered the steel structure construction stage, which has won a lot of precious time for the subsequent installation, debugging and DBV packaging construction of indoor recreation equipment.
