Nanjing Railway Vocational and Technical College Gymnasium Space Frame Project

-

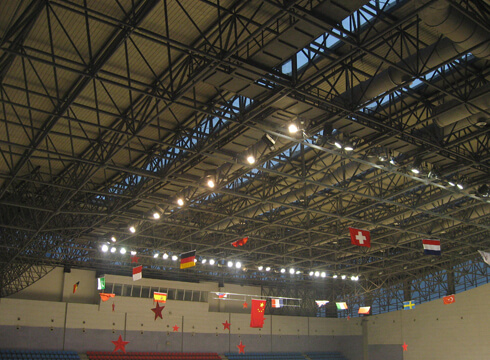

gymnasium space frame
南京铁道职业技术学院体育馆详细图02

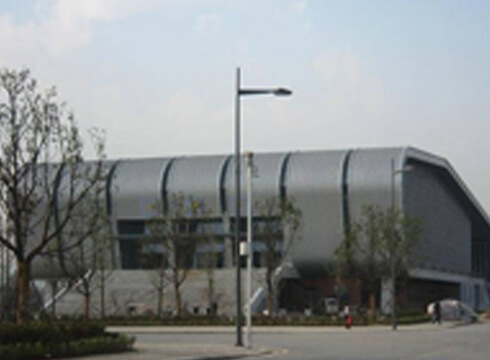

gymnasium space frame
南京铁道职业技术学院体育馆详细图01

  • roof color steel

  • Characteristic environmental-friendly

  • Wind load 0.5 KN/㎡

  • Life span 50 years

  • Span 90 m

Advantage

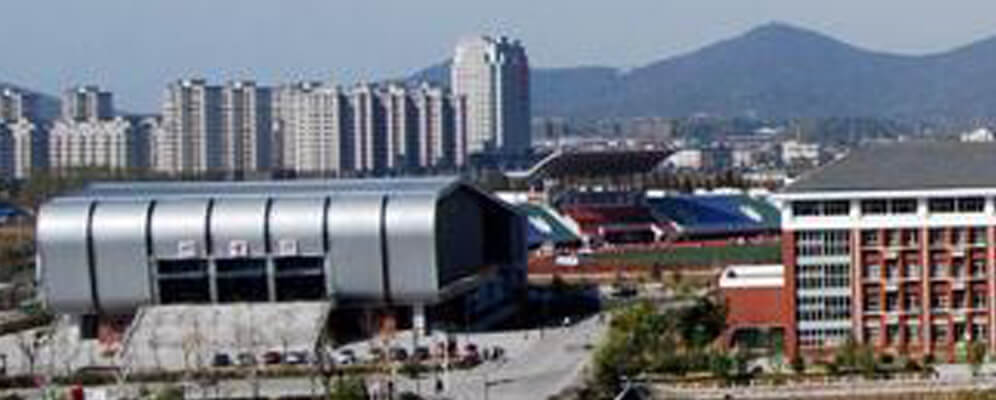

南京铁道职业技术学院体育馆优势图

The gymnasium roof of Nanjing Railway Vocational And Technical College is energy-saving, environmental protection, wind resistant and waterproof, high integrated construction degree, fast construction speed, timely drainage, smooth.
