Luzhou Olympic Park Main Stadium Steel Structure Project

-



stadium,steel structure

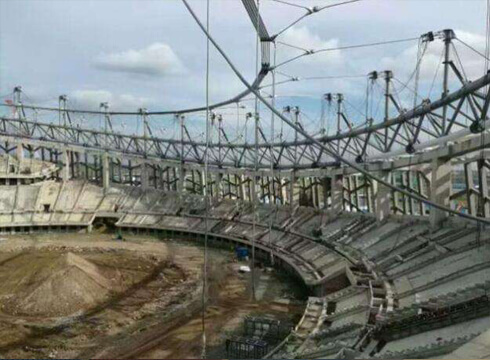

泸州奥林匹克公园主体育场详细图
stadium,steel structure
stadium,steel structure

  • Area 209,884㎡

  • Completion date 2013.9

  • Life span 50 years

  • Wind load 0.5 KN/㎡

  • Steel material Q235, Q345

Advantage

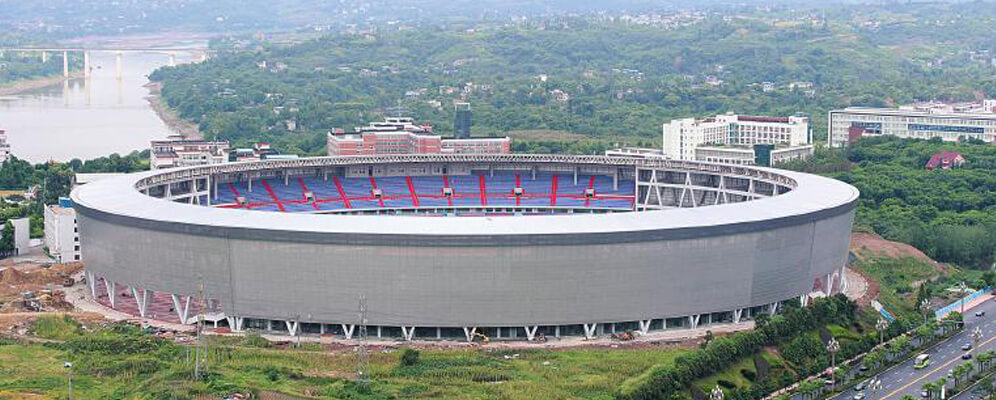

泸州奥林匹克公园主体育场优势图

The main stadium is constructed with a frame structure and a steel roof, and the exterior material of the stadium is made of perforated stainless steel plates, which makes the appearance of the whole stadium more aesthetic. This material is the first used in the southern Sichuan region. At present, The Olympic Park has become a landmark project of Luzhou public sports infrastructure construction.
