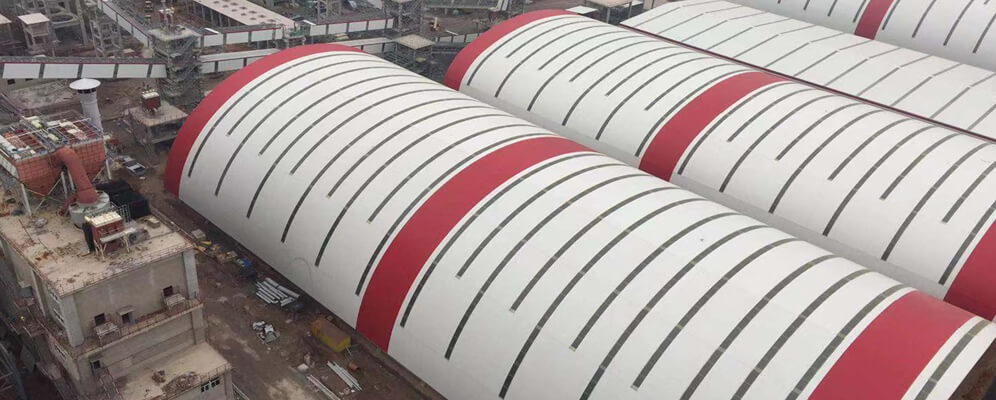

Comprehensive Solid Waste Utilization Project Steel Space Frame Structure Barrel Storage Project in Shanxi

-

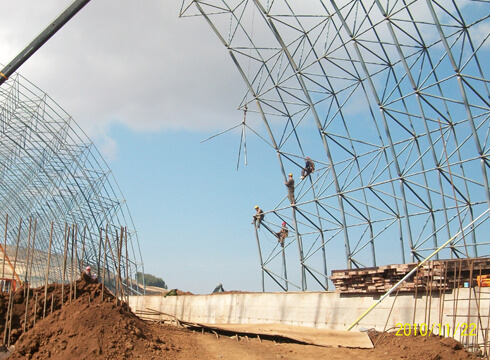

山西国金电力有限公司固废综合利用项目钢网架工程详细图01

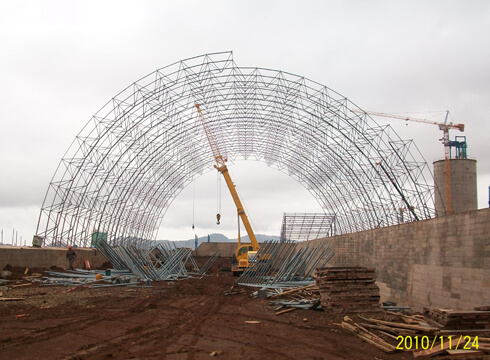

山西国金电力有限公司固废综合利用项目钢网架工程详细图02

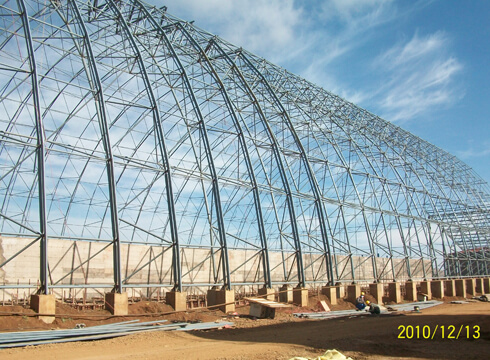

山西国金电力有限公司固废综合利用项目钢网架工程详细图04

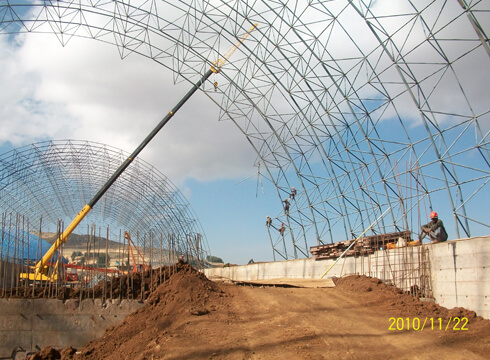

山西国金电力有限公司固废综合利用项目钢网架工程详细图03

  • Raw coal pre - homogenized storage yard: 270*48*19.963 m

  • Gypsum, mixed material pile shed: 150*42*1.8 m

  • Limestone prehomogenized yard: 505*57*26.6 m

  • Auxiliary raw material prehomogenizing yard: 270*49.4*25.7 m

  • Clinker storage cone mesh rack: 17m (height)

Advantage
steel structure contractor

The project is located in Wenshui County, Luliang City, Shanxi Province,Include 5 items:The barrel space frame storage of the raw coal prehomogenizing yard, the length is 270m, the span is 48m, the height of space frame is 19.963m;Gypsum& mixed materials storage shed is a flat space frame, the length is 150m, the span is 42m, the vector height of space frame is 1.8m;The barrel space frame storage of the limestone prehomogenizing yard is 505m length, 57m span and 26.6m space frame height;The barrel space frame storage of the auxiliary raw material prehomogenizing stockpile, the length is 270m, the span is 49.4m, the space frame height is 25.7m;The cone space frame storage of the clinker, the diameter is 60~15m, the height of space frame is 17m, the thickness of the space frame is 2m.
