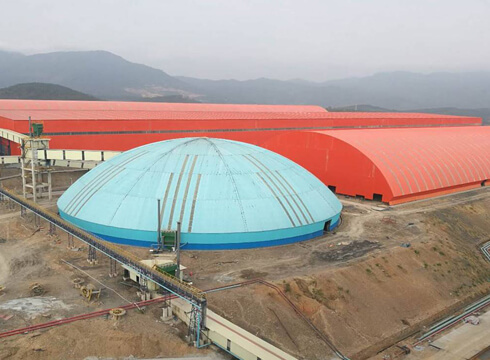

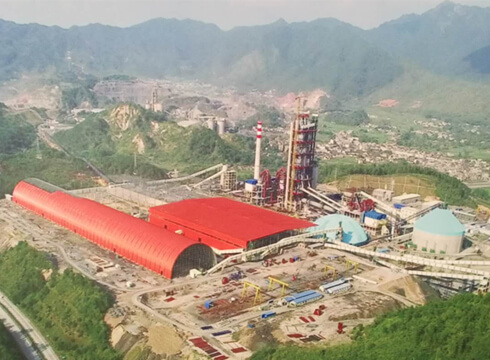

Guangdong Tapai Group Steel Structure Space Frame Dome and Barrel Storage Project

-

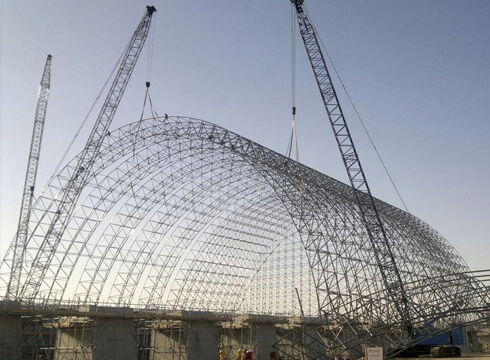

广东塔牌集团股份有限公司蕉岭分公司钢结构网架工程详细图02
steel structure

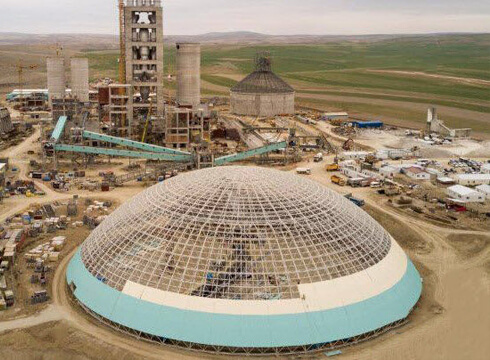

广东塔牌集团股份有限公司蕉岭分公司钢结构网架工程详细图01
steel structure

  • Limestone pre-homogenization yard : 60 m×432 m

  • Pre-homogenized yard: 77 m×310m

  • Raw coal yard : 432 m×132 m

  • Raw coal pre-homogenization yard: 87m diameter dome

  • Clinker storehouse: 75m diameter dome

Advantage

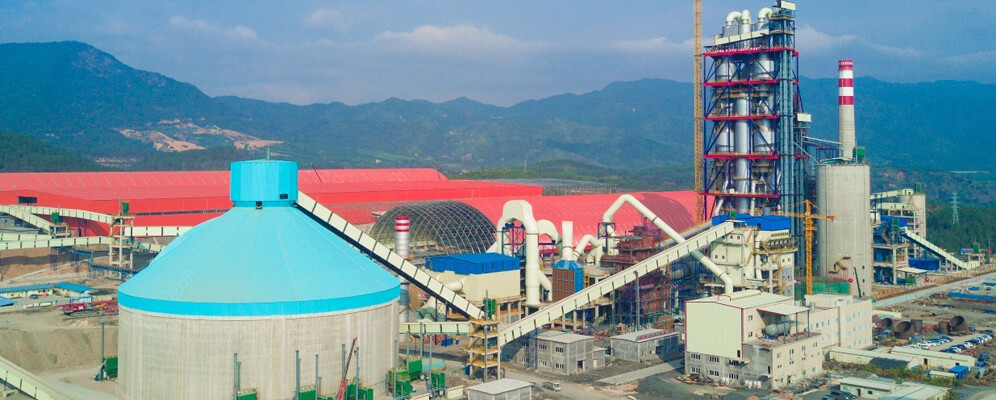

广东塔牌集团股份有限公司蕉岭分公司钢结构网架工程优势图

This project contained several small projects, which are Limestone pre-homogenization yard, pre-homogenization yard, raw coal yard, raw coal pre-homogenization yard, and clinker storehouse. So, it was a big, and involved a series of complex technology.
